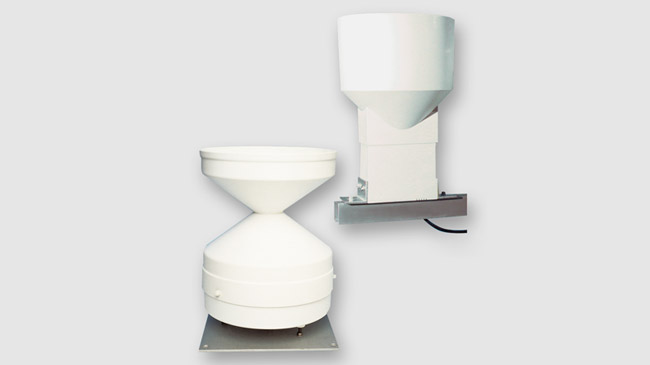

Rain Gauge QMR101 & QMR102

Overview

Due to its small size, weight, and weatherproof design, QMR101 is especially suitable for portable applications and temporary installations. QMR101 is manufactured from UV-resistant plastic, making it a very durable instrument that can withstand frost and icy conditions.

Installed on a sensor support arm, QMR101 uses the self-emptying tipping spoon mechanism to measure the collected rain at a 0.2 mm (0.008 in) accuracy level. It is delivered with a ready-made 1m (3?foot?4?inch) connector cable.

QMR102 is a weatherproof, aerodynamically-shaped rain gauge that is designed to minimize any wind-originated airflow to reduce precipitation catchment.

QMR102 is manufactured from UV resistant plastic. It uses the tipping bucket mechanism to measure the collected rain at a 0.2 mm (0.008 in) accuracy level. QMR102 is installed on a stand or pedestal and is delivered with a 10m (32?foot?10?inch) shielded connector cable.
