Seismology

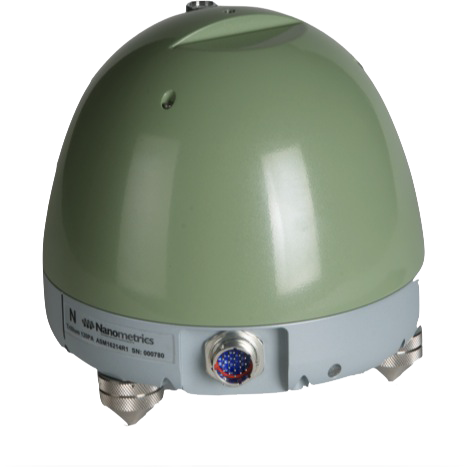

Trillium 120 Q/QA Broadband Seismometer

A compact portable sensor offering superior broadband performance over a wide temperature range with very low self noise.

---

Summary

The Trillium 120 Q/QA maintains the high performance of the Trillium 120P/PA while boasting higher clip levels at high frequencies, lower noise floor, lower power consumption and flattened response.

This broadband seismometer has been deployed worldwide for vault earthquake monitoring in observatories and portable deployments where lower noise floors are required.

Fast, "one touch" motorized mass centering (T120-QA-SV1) simplifies installation and provides the option of remotely re-centering the massesvia a telemetry connection. Mass centering rarely required after initial installation; local and remote mass centering are now possible.

The internal seismometer web page assures data quality with increased visibility to state-of-health and instrument controls (via SLIP to Centaur or Taurus digital recorders).

Nanometrics' Trillium 120 Q/QA might be right for you if:

• You need very broadband performance from a portable, low-power seismometer
• You're installing in harsh environments
• You require a lower noise floor
• You value simplified installation via motorized mass centering

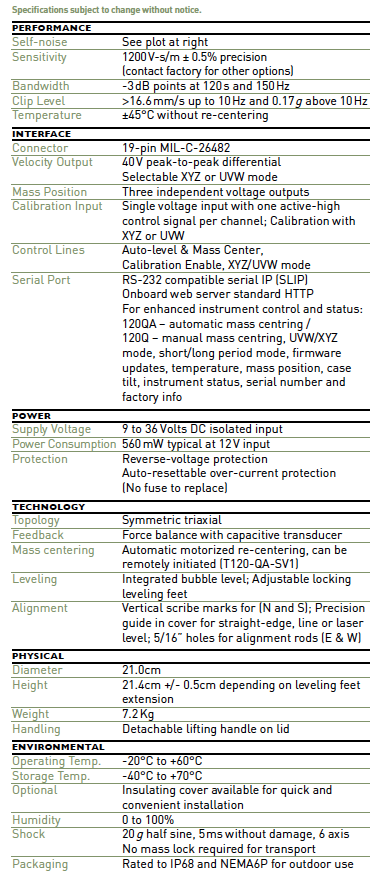

Specifications

Performance
