Detection of Very low frequency acoustic signals in a wide frequency range with excellent resolution and high dynamic, with remote calibration capability.
Detection of Very low frequency acoustic signals in a wide frequency range with excellent resolution and high dynamic, with remote calibration capability.

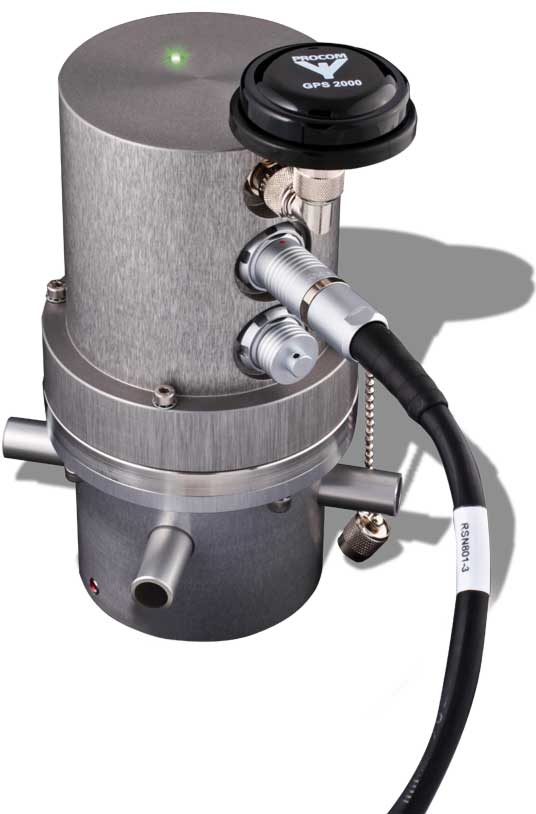

Developed by CEA and Prolann, The MB3 is the new generation of microbarometer, that succeed to MB2005, the market Leader, appreciated for its accuracy and reliability, and installed all over the world.
The MB3 D is a digital sensor integrating
Product sold under licence of CEA
Compact and lighter than the MB 2005 MB, The Digital MB3 is a concentrate of technology and performance:

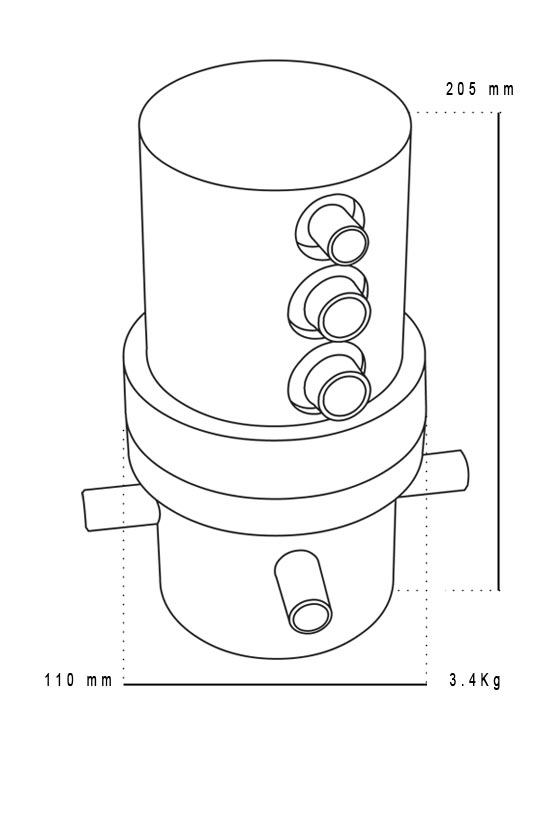

| D 110 mm / H 205 mm / Weight 3.4 kg |
| Bandwidth Pressure output: 0,01 - 28 Hz / Pressure derivative output: DC – 28 Hz |
| Self-Noise < 10 dB under the LNM (Low Noise Model) |
| Resolution 1,75 mPa RMS on [0,02 ; 4] Hz |
| Sensitivity Pressure output: 20mV/Pa / Pressure Derivative Output: 2mV/pa.s-1 / Calibration output: 6 V/Pa |
| Digitizer |
| Sampling rate 20, 50, 100 Hz / Sensitivity: 1,178 10-4 Pa/lsb or 1,178 10-5 Pa/s/lsb @ gain = 1 |
| Distant calibration Sine, pulse or MLS |
| Data storage 1 GB data recording (miniSEED) |
The MB3 is remarkable for an extremely low level of instrumental noise (<-80 dB.Pa / v Hz @ 1 Hz) allowing the sensor to resolve more than 10 dB the Low Noise Model. This sensor has been designed especially to meet the requirements of infrasound stations of the IMS network (International Monitoring System) installed as part of the CTBT (Comprehensive nuclear Test Ban Treaty)
The transfer function is an important parameter to ensure the results from the treatment of the acquired signals. The sensor is adjusted at factory to a value of sensitivity of 20 mV / Pa at 1 Hz
